Plates, bone screws, disc spacers and stand-alone cages for anterior cervical cases: a plate, screws and a spacer, or a single implant that combines them.
A pre-lordosed titanium plate with an integrated locking mechanism rather than a separate locking component.
| Material | Titanium |
|---|---|
| Plate width | 17 mm |
| Profile | 1.8 mm |
| Screw angulation | ± 10° |
| Screw type | Self-drilling |
Stocked sizes
| Plate | Catalogue no. | NAPPI |
|---|---|---|
| 4 hole × 23 mm | 760423 | 1265941001 |
| 4 hole × 26 mm | 760426 | 1265942001 |
| 4 hole × 29 mm | 760429 | 1265943001 |
| 4 hole × 32 mm | 760432 | 1265944001 |
| 4 hole × 35 mm | 760435 | 1265945001 |
| 4 hole × 38 mm | 760438 | 1265946001 |
| 4 hole × 41 mm | 760441 | 1265947001 |

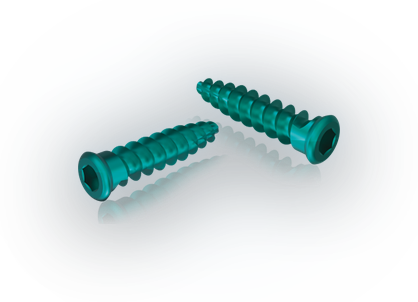

Anterior cervical, self-drilling
| Screw | Catalogue no. | NAPPI |
|---|---|---|
| Ti Ø 4.0 × 12 mm | 764012 | 1265948001 |
| Ti Ø 4.0 × 14 mm | 764014 | 1265949001 |
| Ti Ø 4.0 × 16 mm | 764016 | 1265950001 |
Cedix-P locking
| Screw | Catalogue no. | NAPPI |
|---|---|---|
| Ti Ø 4.0 × 14 mm | 820414 | 1265951001 |
| Ti Ø 4.0 × 16 mm | 820416 | 1265952001 |
| Ti Ø 4.0 × 18 mm | 820418 | 1265953001 |
PRO-LESS V2
| Screw | Catalogue no. | NAPPI |
|---|---|---|
| Ti Ø 3.5 × 12 mm | 851235 | 1265985001 |
| Ti Ø 3.5 × 14 mm | 851435 | 1265987001 |
| Ti Ø 3.5 × 18 mm | 851835 | 1265988001 |
| Ti Ø 4.0 × 12 mm | 851240 | 1265989001 |
| Ti Ø 4.0 × 14 mm | 851440 | 1265991001 |
| Ti Ø 4.0 × 18 mm | 851840 | 1265992001 |

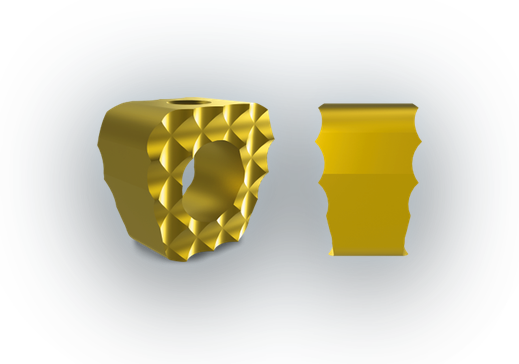

Both spacers have pyramidal teeth and a central canal that holds bone graft.
Cedix · PEEK · 7°
| Height | Catalogue no. | NAPPI |
|---|---|---|
| 5 mm | 580705 | 1265964001 |
| 6 mm | 580706 | 1265965001 |
| 7 mm | 580707 | 1265966001 |
Cedix-P · titanium
| Height | Catalogue no. | NAPPI |
|---|---|---|
| 5 mm | 820105 | 1265954001 |
| 6 mm | 820106 | 1265955001 |
| 7 mm | 820107 | 1265956001 |
Cedix-P is fixed with self-locking, self-drilling titanium screws, Ø 4.0 mm (see bone screws).

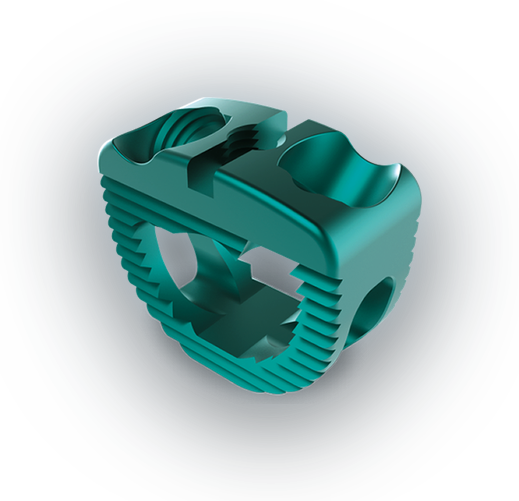

PRO-LESS combines the interbody spacer and its fixation screws, so the construct sits within the disc space rather than as a separate plate on the vertebral body. A large central window takes bone graft. PRO-LESS Hybrid is the companion configuration.
| Profile | Convex (V2) |
|---|---|
| Hybrid material | PEEK and titanium |
| Screw, 5 / 6 / 7 mm cages | Ø 3.5 mm |
| Screw, 8 / 9 mm cages | Ø 4.0 mm |
| Screw thread | Dual lead, self-locking |
Stocked sizes
| Height | PRO-LESS V2 | NAPPI | Hybrid V2 | NAPPI |
|---|---|---|---|---|
| 5 mm | 831500 | 1265969001 | 841500 | 1265977001 |
| 6 mm | 831600 | 1265971001 | 841600 | 1265979001 |
| 7 mm | 831700 | 1265973001 | 841700 | 1265982001 |
| 8 mm | 831800 | 1265974001 | 841800 | 1265983001 |
| 9 mm | 831900 | 1265976001 | 841900 | 1265984001 |
In the tray
One sterilisation tray, marked PROLESS V2 and HYBRID V2, holds both configurations with the graft-handling and driver instruments.
| Bone graft filling block, V2 | P4330902CJ |
|---|---|
| Retention clip applier | Q5060107FJ |
| Screw and cage caddy | PROLESS V2 · HYBRID V2 |
| Acelock plate, titanium | 4 hole · 23 – 41 mm |
|---|---|
| Bone screw, self-drilling | Ti Ø 4.0 mm · 12 – 16 mm |
| Cedix-P locking screw | Ti Ø 4.0 mm · 14 – 18 mm |
| Cedix spacer, PEEK | 5 – 7 mm · 7° |
| Cedix-P spacer, titanium | 5 – 7 mm |
| PRO-LESS V2 cage | Convex · 5 – 9 mm |
| PRO-LESS Hybrid V2 cage | PEEK and titanium · 5 – 9 mm |
| PRO-LESS screw | Ti Ø 3.5 and 4.0 mm · 12 – 18 mm |
No. One tray, marked PROLESS V2 and HYBRID V2, holds both configurations.
Jayon Implants Pvt. Ltd, trading as Jayon Neurosurgical, in Palakkad, Kerala, India, manufacturing orthopaedic and spinal implants since 1999.
Jayon states ISO 13485:2016 certification of its quality management system via DNV-GL, and CE marking for spinal implants via DNV-GL Presafe AS.
Levels, construct and date — by phone, WhatsApp or email.
Mzanzi Spine is a member of SAMED — the South African Medical Technology Industry Association — and subscribes to its Medical Technology Code of Ethical Marketing and Business Practice.
